WSP Series Self-Priming Residential Swimming Pool Filter Pump

China Professional Manufacturer & Supplier of Premium Pool Product.

Direct-Factory Pool Product,100% Swimming Pool Product Manufactory Since 1992.

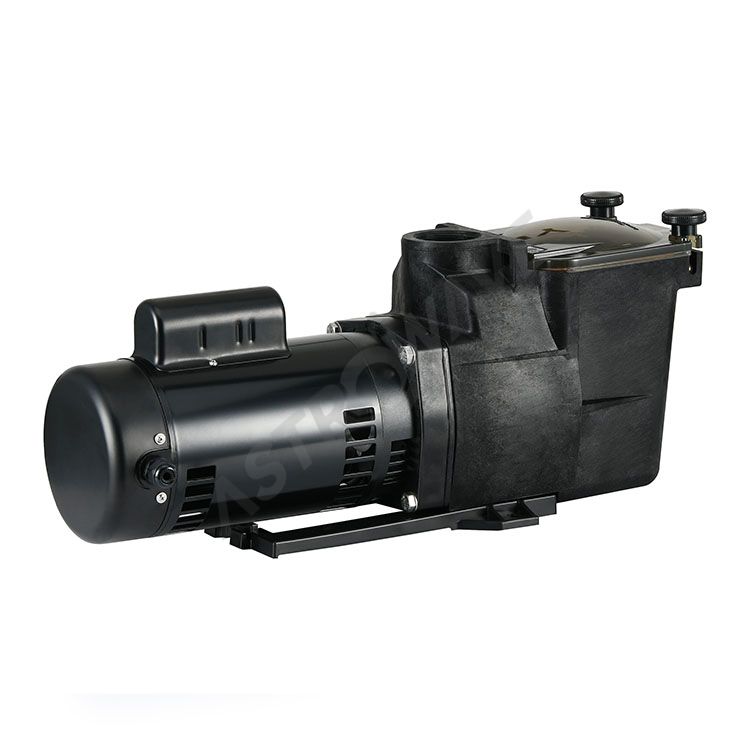

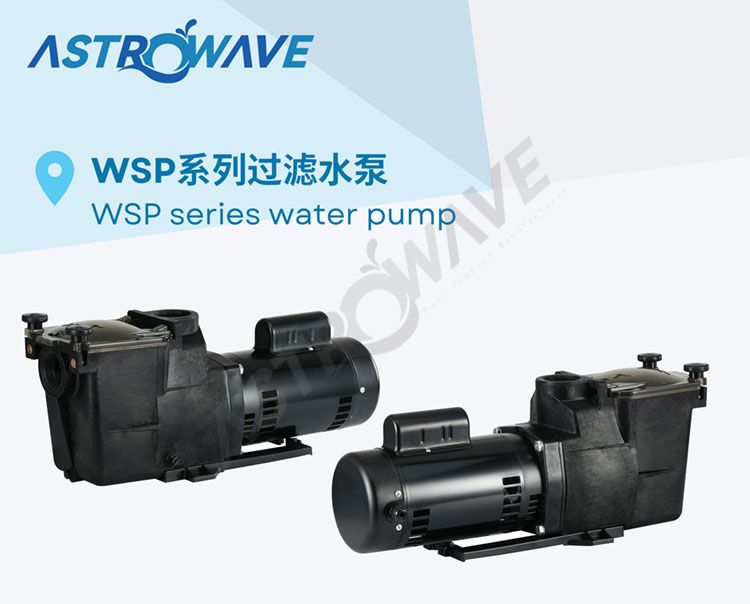

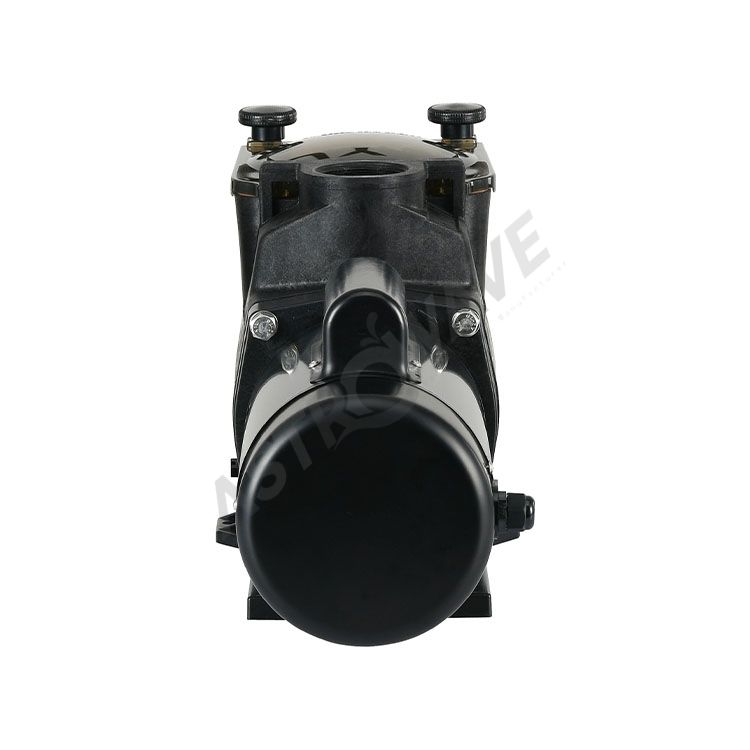

Astrowave WSP Series Pool Pump

The WSP series pool pump is expertly designed following advanced hydraulic principles. The motor features an internal ventilation system, combined with state-of-the-art winding technology for superior performance. The liquid components are constructed from high-strength engineering plastic, ensuring durability and longevity. The pump's high-capacity strainer minimizes maintenance needs by reducing cleaning frequency, offering excellent performance with enhanced efficiency. This design accelerates water circulation and significantly improves energy savings.

Key Features:

1,Durable Construction: The wet end is crafted from high-strength engineering plastic for extended lifespan.

2,Precision Engineering: Equipped with wear-resistant mechanical seals and low-noise standard motors. The pump motor includes a built-in thermal protector.

3,Long-Lasting Performance: High-temperature resistant bearings ensure reliable, long-term operation.

4,Enhanced Safety: Complete separation between liquid and shaft provides increased safety and reliability.

5,Optional Features: Available with air switch/pneumatic switch options.

6,Robust Protection: Insulation Class F and IPX3-rated protection for secure and efficient operation.

7,This high-efficiency, powerful water circulation pump is ideal for a wide range of applications, offering reliable and energy-efficient performance.

Applicable for inground Swimming Pool,above ground pool,SPA,residential pool,commercial pool, water features,landscape,jacuzzi,hot tub,aquatic systems, spa massage pools, aquariums, water parks, fountains, industrial water pre-treatment, and aquaculture applications.

Product Features

• Integrated pump design with pre-filter
• Quick-open design for fast and convenient access
• Insulation Class: 130 (B)
• IPX3 Waterproof Standard
• Built-in Overheat Protection
• Compatible with both metric and imperial piping
• Test Pressure: 36 PSI / 2.5 Bar
• Temperature Resistance: Tested with water at 90°C
• Internal Cooling System
• Can be installed up to 1 meter above ground level
• Pump shaft does not come into contact with the liquid
• Filter capacity: Approx. 4 liters
• Strainer mesh size: Approx. 4 mm

Materials

• Pump casing: PP GF20
• Housing cover: PP GF20
• Diffuser: ABS
• Impeller: PPO
• Strainer basket: PP
• Lid: PC
• Mechanical seal: Carbon/Ceramic/NBR
• Screws: Stainless Steel
• Seal ring: Silicone
