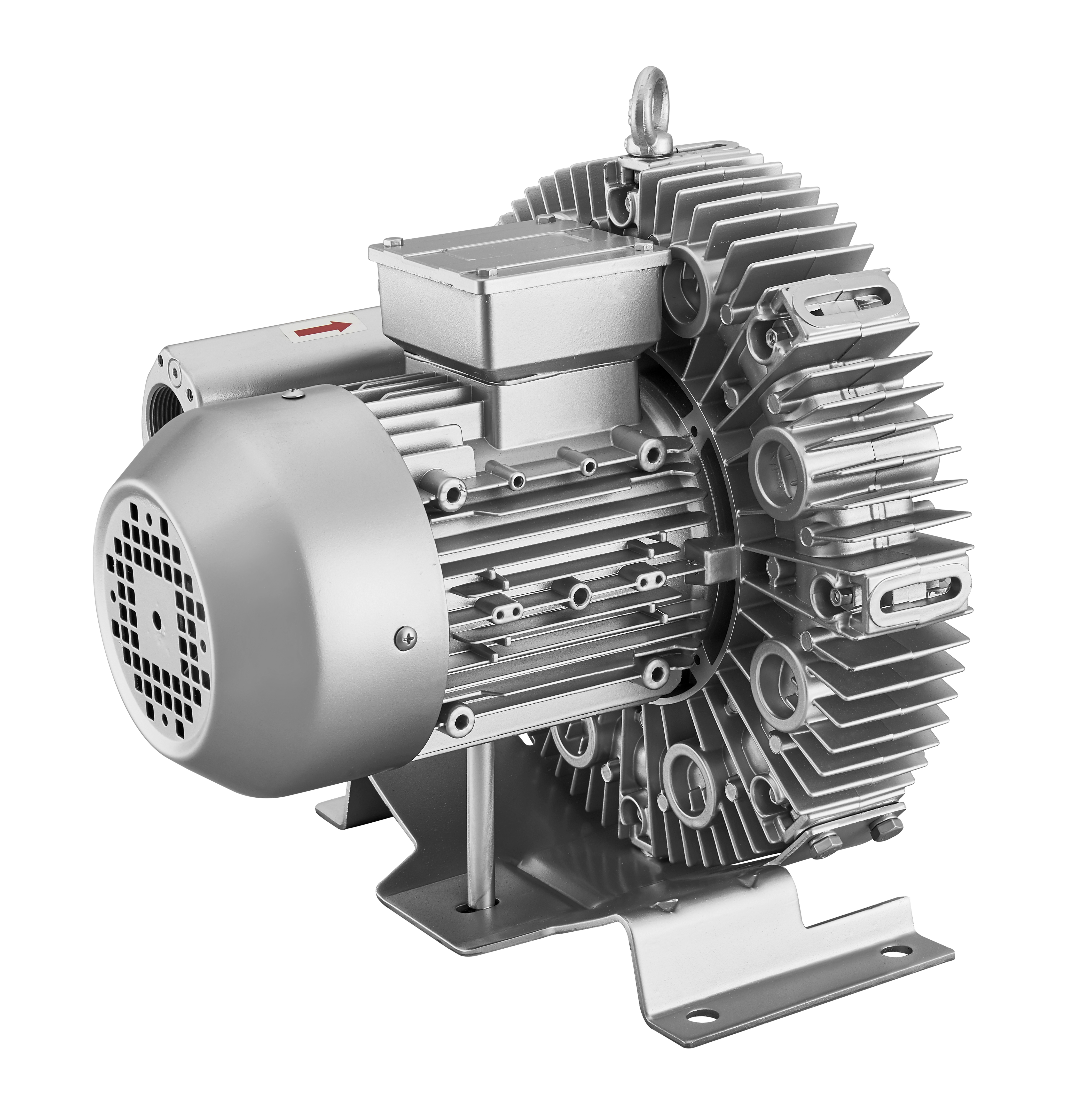

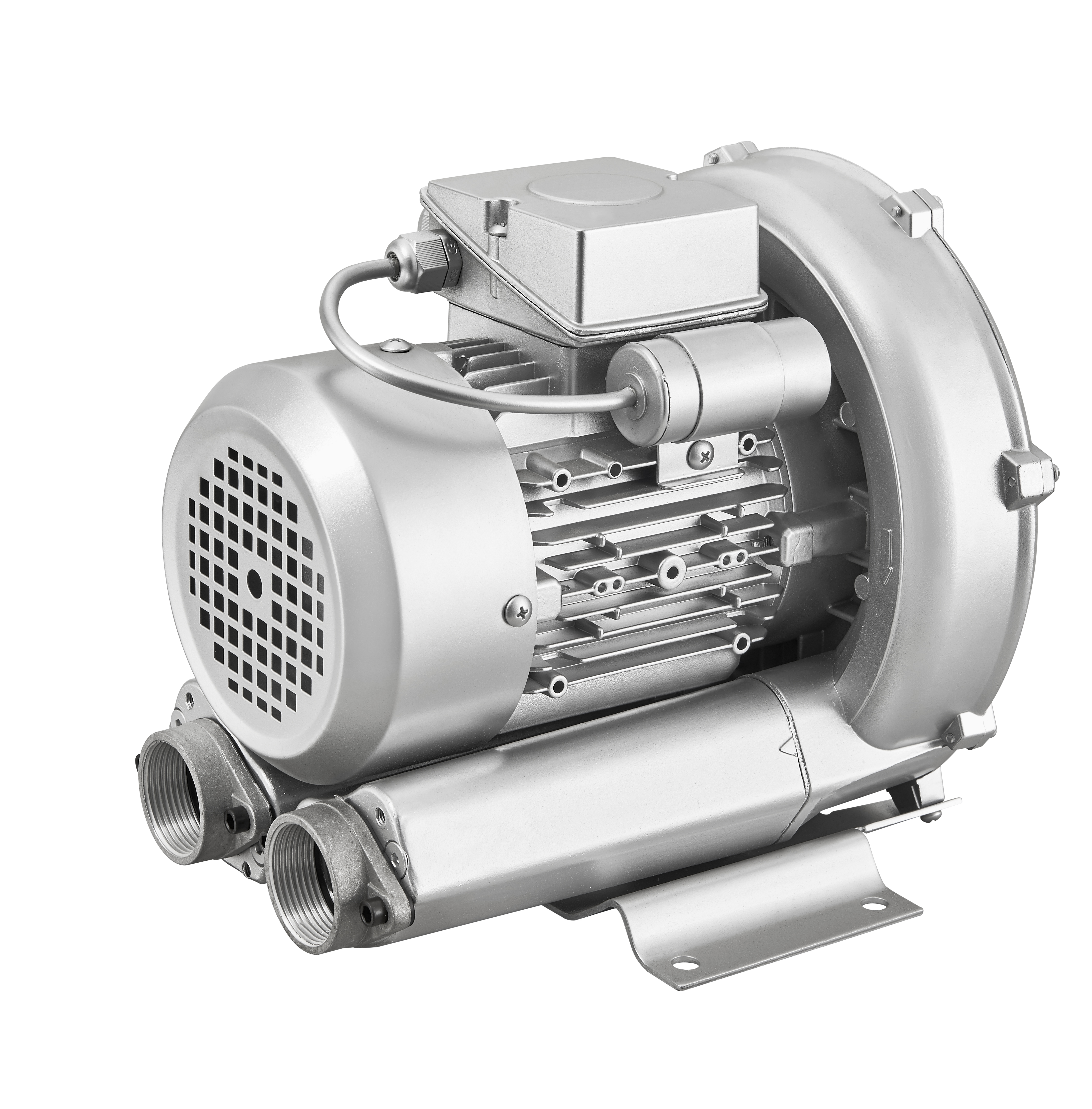

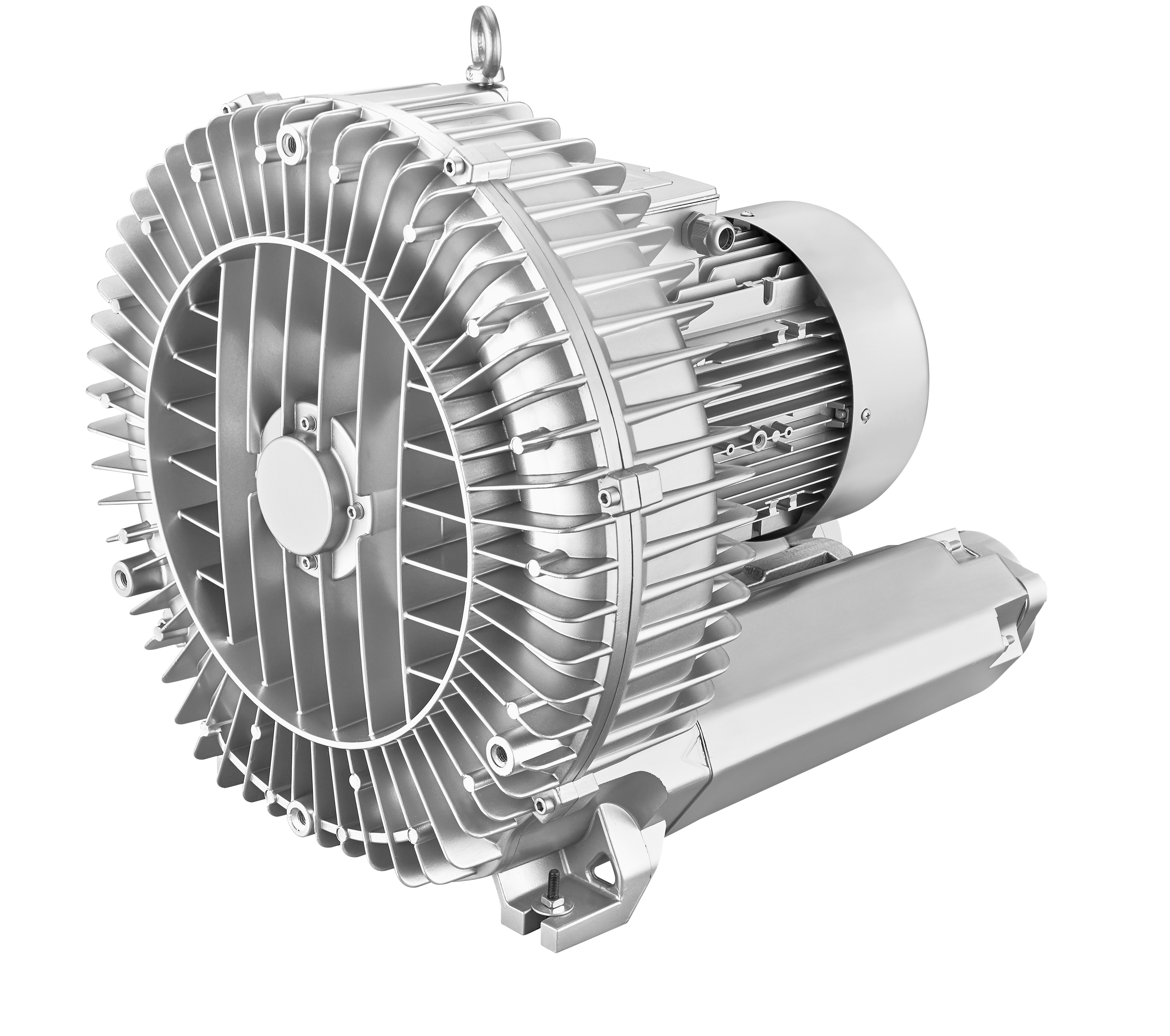

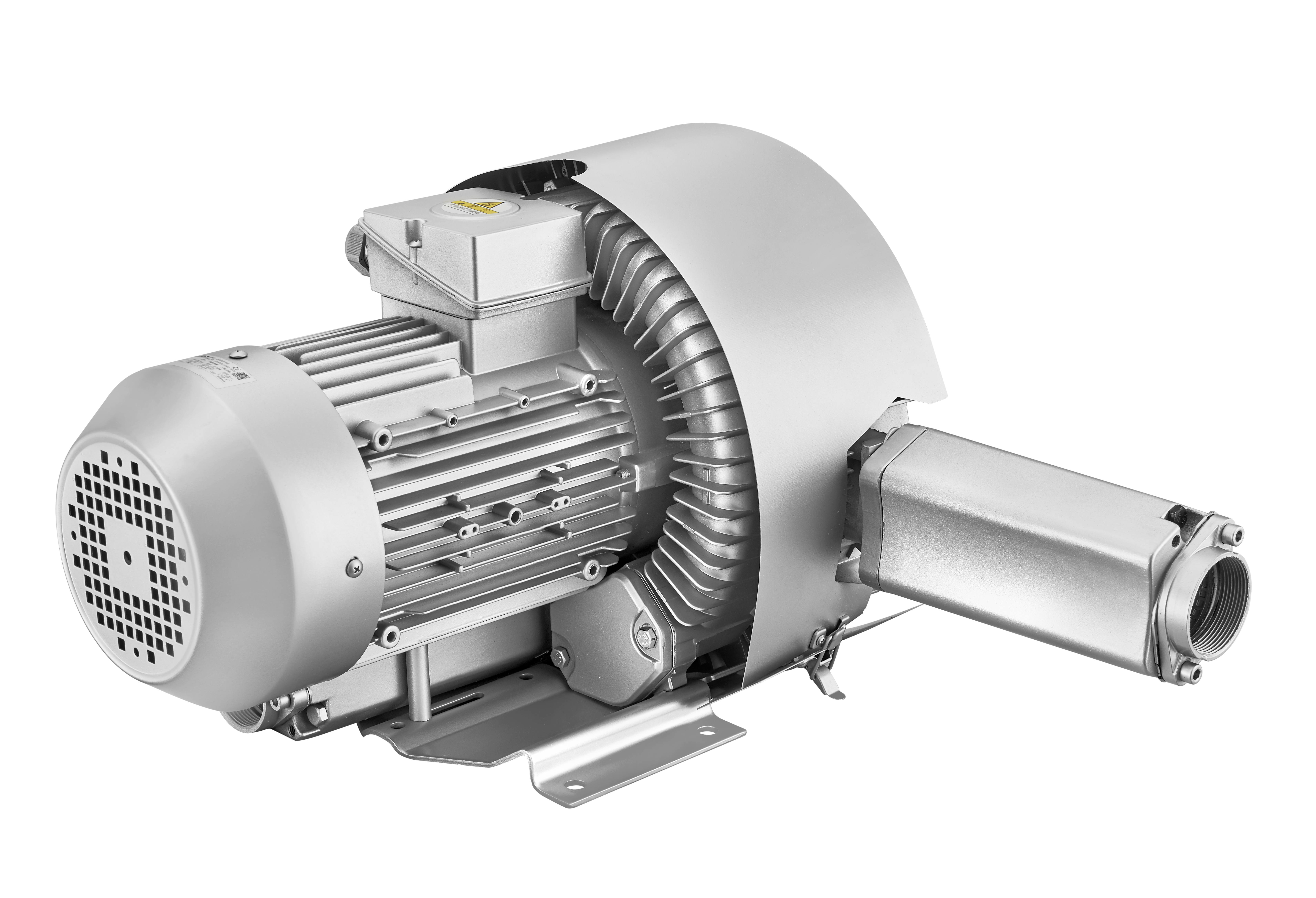

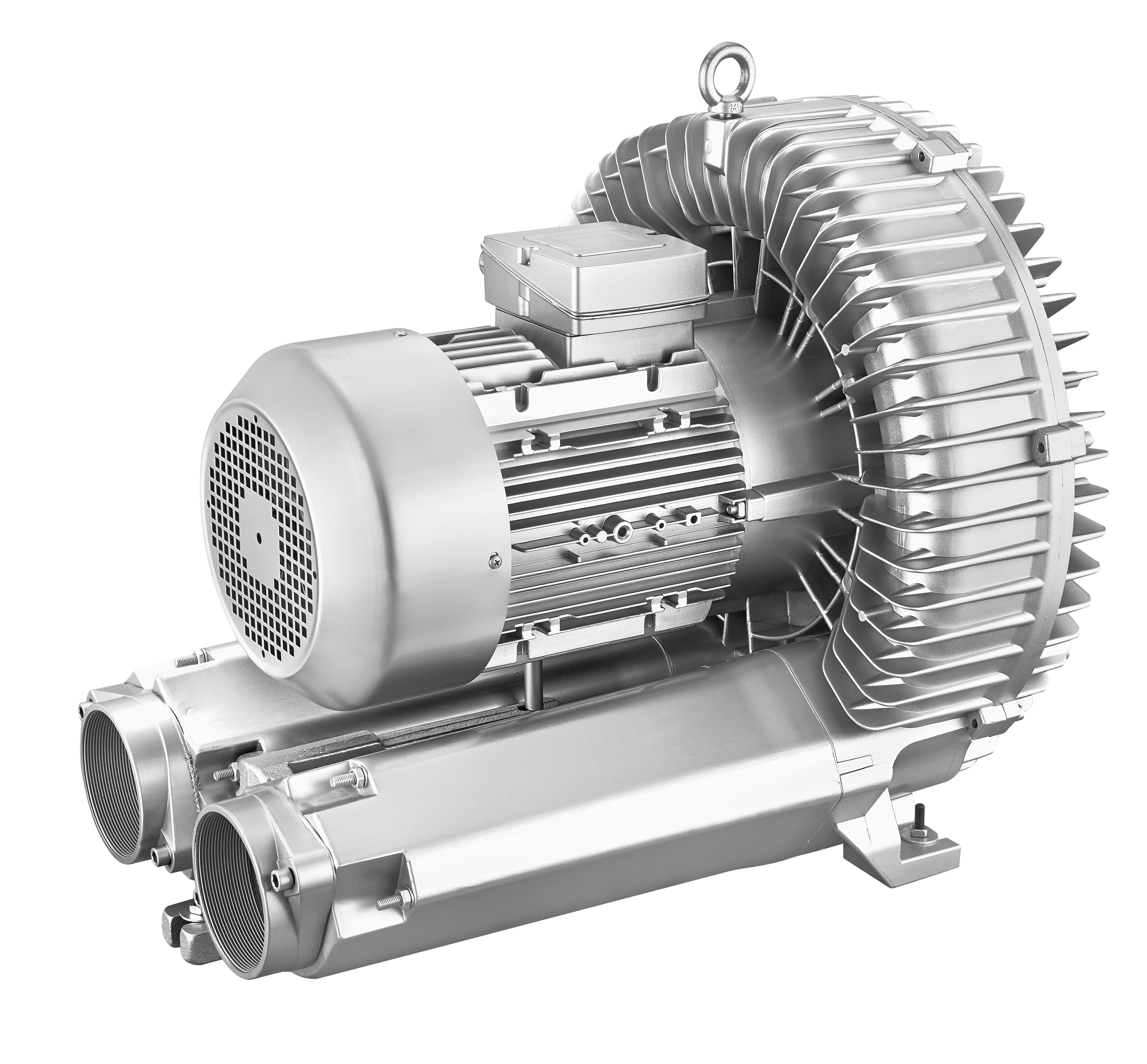

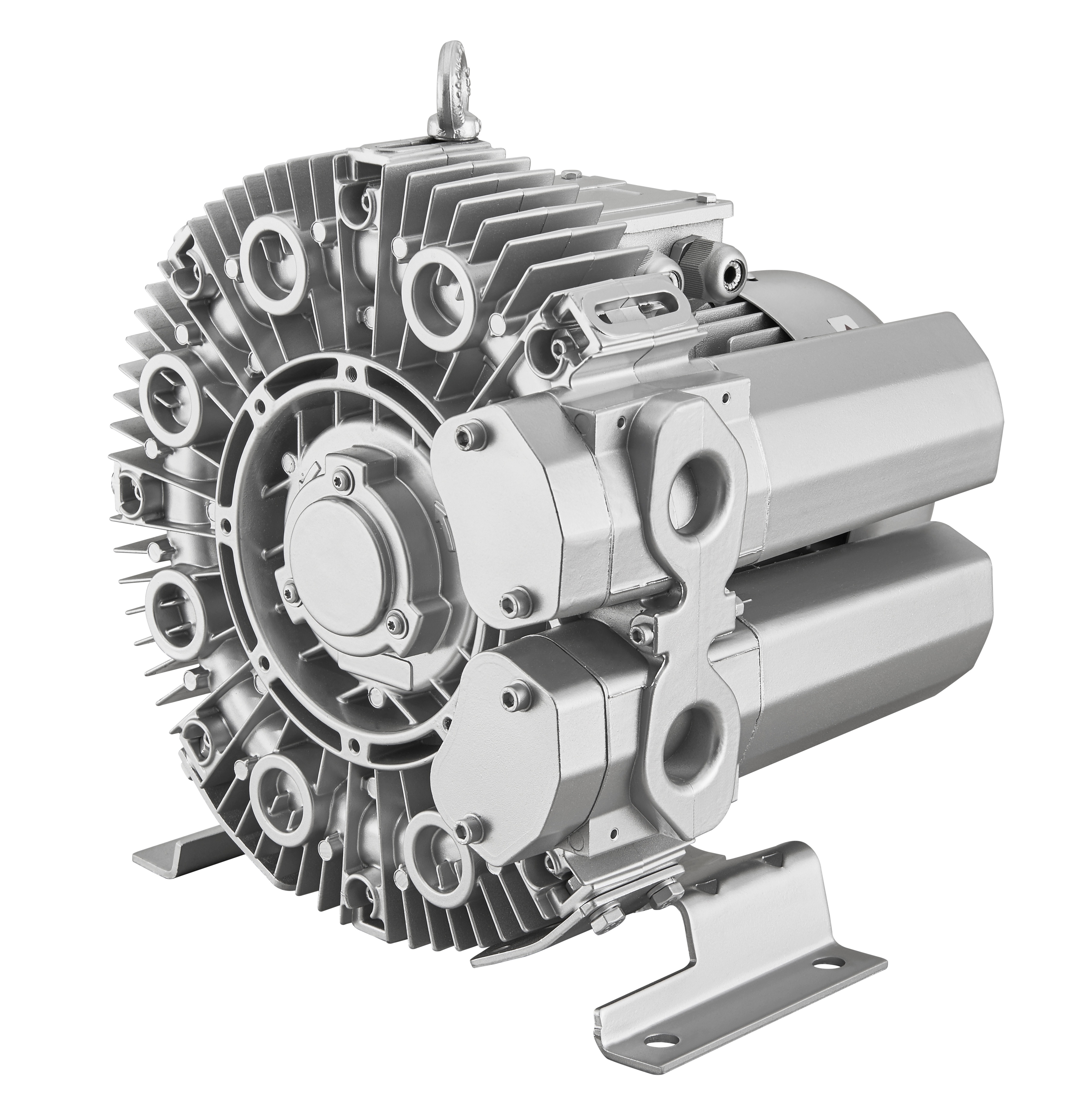

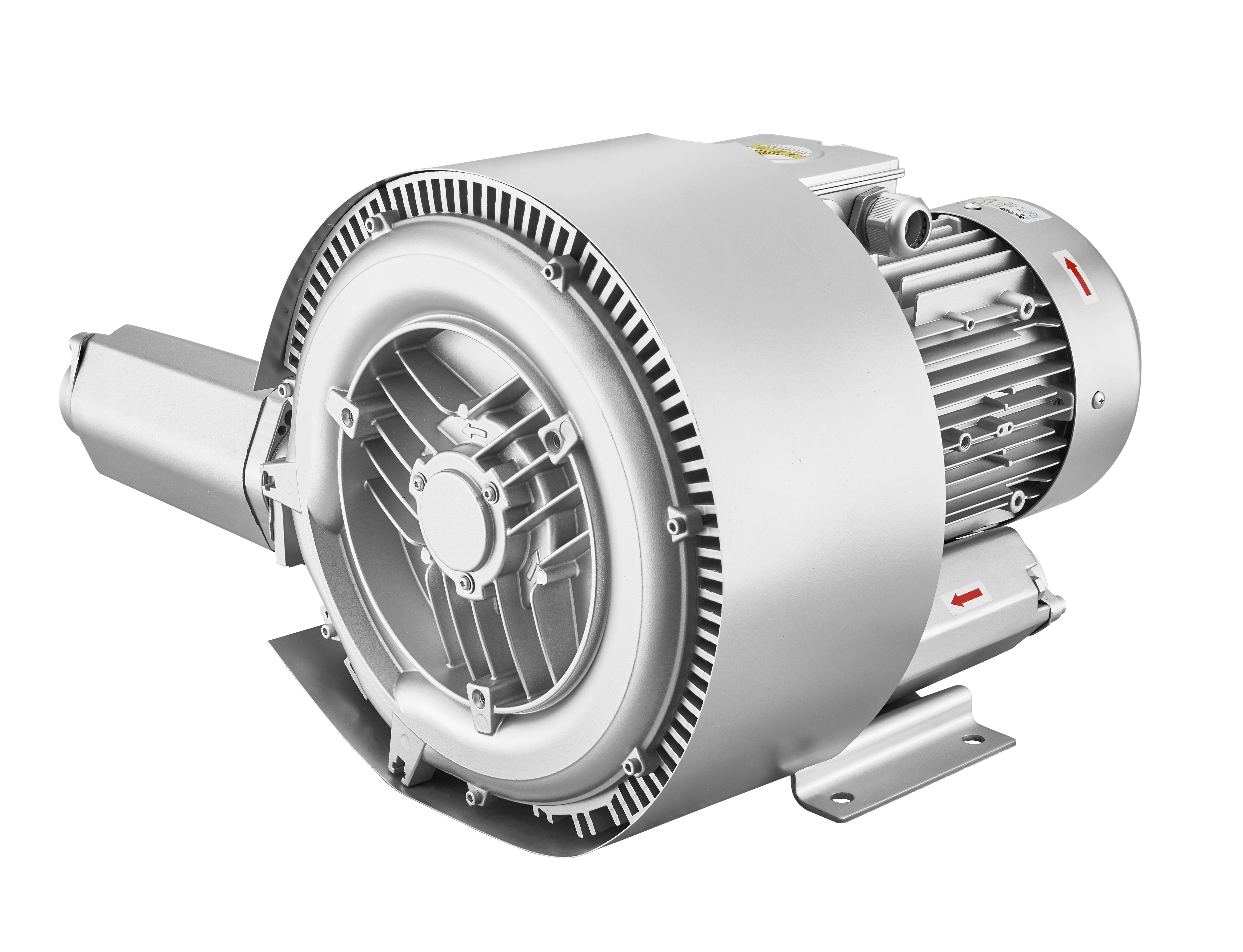

High Pressure Aluminum Ring Air Blower for Swimming Pool

High Pressure Aluminum Ring Air Blower for Swimming Pool

High-Performance Air Pump – Astrowave Pool air pump features 100% oil-free operation and IP55 protection grade motors with class F insulation. Designed for global compatibility, it offers dual frequency (50/60Hz) and wide voltage adaptability. Equipped with variable frequency drive technology, it delivers up to 300% enhanced performance. Built with die-cast casing and impellers, it ensures durability, heat dissipation, and precision. Perfectly engineered with cutting-edge tools like PROE, UG, and CAD for reliability and efficiency. Ideal for industrial and global applications.

inquire now

China Professional Manufacturer & Supplier of Premium Pool Product.

Direct-Factory Pool Product,100% Swimming Pool Product Manufactory Since 1992.


1. 100% oil-free, no water compression, all of the air ring vacuum pump motors are IP55 protection grade, class F insulation;

2. dual frequency (50/60Hz) and wide voltage can meet almost all regions of the world the voltage level, the external design of the bearing, can bear high working temperature, improves the reliability and service life;

the introduction of variable frequency drive new concept, than the maximum performance can be driven by a common motor is improved to 300%, impeller and pump body seal forms the unique reduced pressure gas pressure loss in the process of compression;
pump casing, impeller die-casting molding, sturdiness and durability, excellent heat dissipation, imported Japan Germany, precision machine tool cutting, ensure the accuracy and quality, air pump through the surface of protective paint processing;
products through the strict mechanical, electrical performance test, simulation demonstrate the use of PROE, UG, CAD and other computer aided design software and motion.

ATTENTION!!!

Operation:
1、During operation, if the rated current of the motor is exceeded, the voltage and frequency of the power supply.
2、should be checked and compared with the rated data of the unit.
3、Some blowers cannot be operated within the entire performance curve range.
4、Motor overload may be caused by excessive system back pressure. In applications where overpressure conditions may occur, a safety valve must be installed.
5、The blower must not be subjected to shock or vibration loads.

Maintenance:
1、The blower operates without contact and generally does not require maintenance.
2、Wear parts are subject to recommended maintenance intervals and form an integral part of the applicable warranty claim.
3、The service life of bearing parts depends on operating time, load and other influencing factors such as temperature and working pressure.

Installation:
A. Transport
Inspect all components for damage during transport.

B. Installing components
1、The blower should be installed in a weather-protected place and must not be stored outdoors in an unprotected place. When installing the blower outdoors, it must be covered.

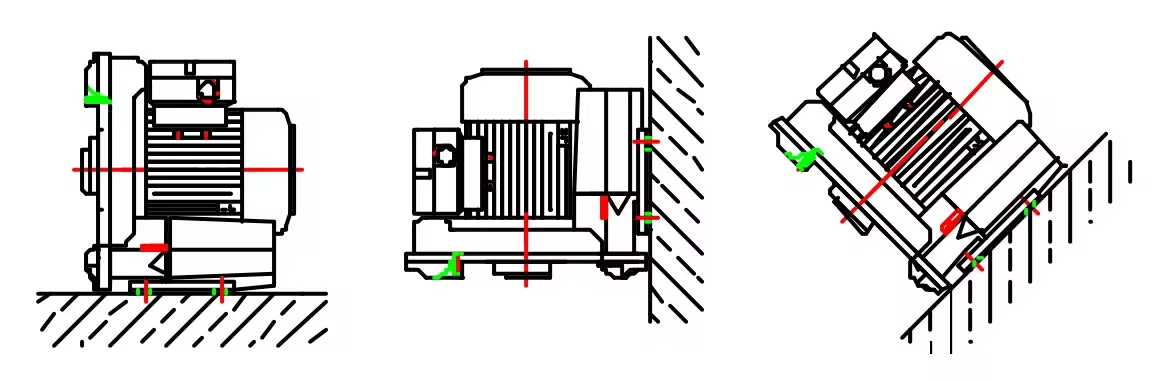

2、Water ring compressors can be installed horizontally or vertically, but do not subject them to vibration or shock.Blowers with bases should be fastened to a solid, level ground.

C. Electrical connectionAttention! The work described here must be performed by a qualified electrician. Connect the motor according to the wiring diagram in the terminal box. The blower is equipped with a single-phase or three-phase motor, as described on the motor plate. The motor should be protected with an overload switch.

D. Control the direction of rotationStart the blower for a short time and check the direction of rotation. The direction of rotation on the impeller must match the direction of the arrow on the motor. If the wrong direction of rotation is encountered, check the wiring circuit in the terminal box.
